DOBNER - Metal Ceiling Systems

 Dobner Sport Strip Ceilings - Accessoires

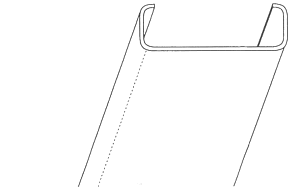

The steel panel
The steel panel

Panel base: 75 mm
Join: 25 mm
Module: 100 mm
Panel height: 23 mm
Material: galvanised steel plate, 0.8 mm thick, unperforated
Visible side: white enamelled, polyester paint
Rear side: protective paint
Lenghts: avaiable in lenghts from 1300 to 7000 mm.

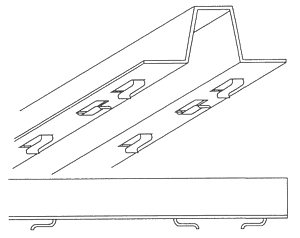

The carrier rail for sports panels
The carrier rail for sports panels

Material: galvanised steel plate, 1 mm thick
Module: 100 mm
Lenght: 4000 mm
Quantity in pack: 10 (40 meters)

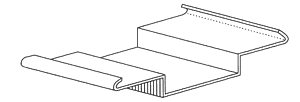

Strip securing clip
Strip securing clip

Material: aluminium, 0.8 mm thick, 25 mm wide, painted black
Quantity in pack: 500

Carrier rail cross-piece
Carrier rail cross-piece

Material: aluminium, 0.8 mm thick, 25 mm wide, black enemelled
Quantity in pack: 500

Panels avaiable in special colours on request. Minimum quantity in any one colour: 900 m². Prices in request.

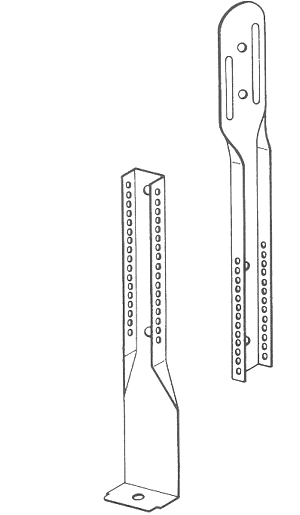

Nonius bracket - upper part
Nonius bracket - upper part

Material: steel plate, galvanised
Material thickness: 1.25 mm
Lenghts: 150 mm to 2000 mm
Quantity in pack: 100

Nonius bracket - lower part

Material: steel plate, galvanised
Material thickness: 1.25 mm
Lenghts: 170 mm
Quantity in pack: 100


Nonius securing pin
Nonius securing pin

For joining the upper and lower parts of the Nonius bracket
Material: galvanised wire
Quantity in pack: 100

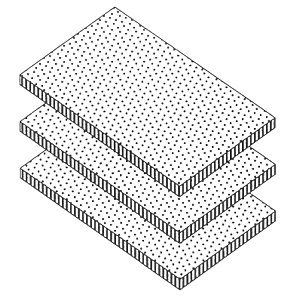

Acoustic mats
Acoustic mats

Material: mineral wool, 20 mm thick, coated with black glass fleece on one side
Dimensions: 625 x 1000 mm
Weight: approx. 49 kilos / square meter
Behaviour in fire: complies with DIN 4102, non-inflammable
Quantity in pack: 12.5 square meters

Should any questions arise, please do not hesitate to contact our technical specialists without obligation
