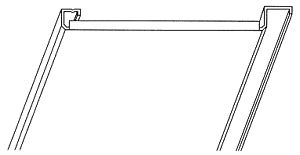

a) dobner rectangular-panel
ceilings
Material: Aluminium, stove-enamelled Rear side coated with protective paint Material thickness: 0.7 mm Colour: Similar to RAL 9010 Base width: 300 mm Lenghts: Avaiable in lenghts of 1000 to 3000 mm |
|
|

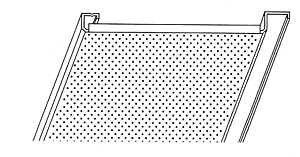

b) dobner rectangular-panel
ceilings
Description as above, but perforated Hole diameter: 2 mm Offset diagonally Percantage perforated area: 16 % |
|
|

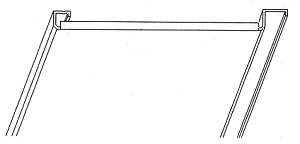

c) dobner rectangular-panel
ceilings
Description as in a) Base width: 312.5 mm |
|
|

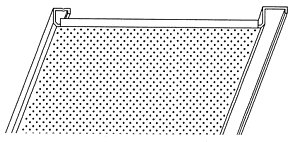

d) dobner rectangular-panel
ceilings
Description as in b) Base width: 312.5 mm |
|
|

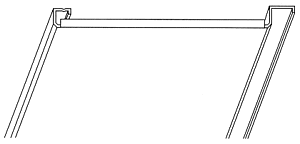

e) dobner rectangular-panel
ceilings
Material: Sheet steel, galvanised, stove enamelled Rear side coated with protective paint Material thickness: 0.6 mm Colour: Similar to RAL 9010 Base width: 300 mm Lenghts: Avaiable in lenghts of 1000 to 3500 mm |
|
|

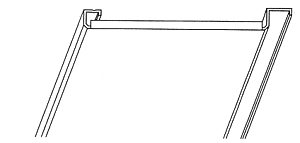

f) dobner rectangular-panel
ceiling
Description as in e), but Base width: 312.5 mm |
|
|
||
|
||
|
