 Dobner Square Tile Ceilings - Accessoires


Hole pattern Rd 2516
Hole pattern Rd 2516

Hole diameter 2 = 2.50 mm
Hole spacing g = 4.00 mm
Hole spacing t = 5.66 mm
Hole roes diagonal offset = 45°
Free cross-section Ao = 15.4 %
Designation to DIN Rd 2.50 - 5.66


Hole pattern Rg
        2516
Hole pattern Rg 2516

Hole diameter w = 2.50 mm
Hole spacing t = 5.50 mm
Hole rows straight
Free cross section Ao = 16.2 %
Designation to DIN Rd 2.50 - 5.50

Hole pattern Rd
        3022
Hole pattern Rd 3022

Hole diameter w = 3.00 mm
Hole spacing g = 4.00 mm
Hole spacing t = 5.66 mm
Hole rows diagonal offset = 45°
Free cross-section Ao = 22.0 %
Designation to DIN Rd 3.00 - 5.66

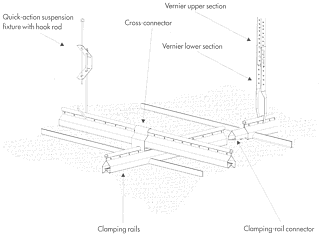

Clamping spring

Clamping spring
Material: Steel, galvanised
Lenght: 125-250 mm

Vernier upper section
Material: Steel, galvanised
Lenght: 135-1000 mm

Vernier lower section
Material: Steel, galvanised

Cross-connectors
Material: Steel, galvanised

Suspension rods
Material: Steel, galvanised
Lenght: 125-1500 mm

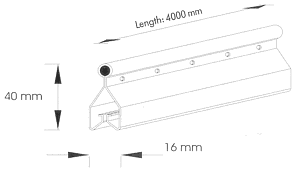

Clamping rail
Clamping rail

Material: Steel, galvanised
Dimensions: 40 x 16 mm
Lenght: 4000 mm

Clamping-rail
        connectors
Clamping-rail connectors

Material: Steel, galvanised
Dimensions: 40 x 16 mm
Lenght: 4000 mm

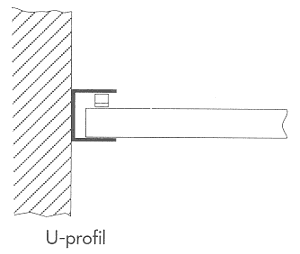

U-profile
        sections
U-profile sections

Material: Steel, galvanised
powder-coated in colours of the coffers
Material thickness: 0.6 mm
Dimensions: 24 x 34 (inside dimension) x 24 mm

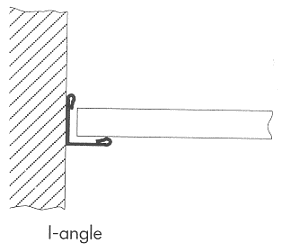

Angle sections
Angle sections

Material: Steel, galvanised,
powder-coated in colours of the coffers
Material thickness: 0.6 mm
Dimensions: 24 x 24 mm
Lenght: 3000 mm


Pressure springs
        as hold-down devices on cut coffers
Pressure springs as hold-down devices on cut coffers

Material: Spring steel
Packed in units of: 100 ea.

Acoustic insert
Acoustic insert

Material: mineral wool boards, 20 mm thick welded into black PE film
Dimensions: 625 x 625 mm and 600 x 600 mm



Should any questions arise, please do not hesitate to contact our technical specialists without obligation


upwards upwards
