 Dobner Aluminium Strip Ceilings - Accessoires

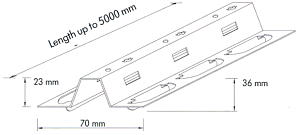

Steel carrier
Steel carrier

The mounting rail is made of galvanised sheet steel and is black stove-enamelled on both sided.
New!
The join width is infinitely variable from 4 to 50 mm.
Thickness: 0.5 mm
Lenght: max. 5000 mm

Aluminium carrier

The mounting rail is made of aluminium and is black stove-enammeled on both sides. The join width is steplessly variable from 4 to 50 mm.
Thickness: 0.8 mm
Lenght: max. 5000 mm

Mounting rail with strips<br>
        Type K84 / Module size 100
Mounting rail with strips
Type K84 / Module size 100

Mounting rail with strips<br>
        Type K 134 / Module size 150
Mounting rail with strips
Type K 134 / Module size 150


Mounting rail with strips<br>
        Type K 184 / Module size 200
Mounting rail with strips
Type K 184 / Module size 200



Mounting rail with strips, Type K 284 / Module size 300
Mounting rail with strips
Type K 284 / Module size 300


Mounting rail with strips, Type K 100-300 / Module size 100-300
Mounting rail with strips
(closed joins)
Type K 100-300
Module size 100-300



Standard perforations
Standard perforations

Hole pattern Rg 3019


Hole diameter 3.0 mm
Hole spacing 6.0 mm
Hole rows straight
Free cross-section 19.6%

Hole pattern Rv 2016
Hole pattern Rv 2016

Hole diameter 2.0 mm
Hole spacing 5.0 mm
Hole rows diagonal offset 60.0°
Free cross-section 16.0%


Hole Pattern Rg 0501
Hole Pattern Rg 0501

Hole diameter 0.5 mm
Hole spacing 5.0 mm
Hole rows straight
Free cross-section 0.64 %

Ideal acoustic performance due to fibre free absorber technology

Rail connectors
Rail connectors

Made of aluminium, black stoved-enamelled on both sides. The longitudinal joins of the mounting rail are firmly connected by clipping in the connector.


Extension springs
Extension springs

If a suspension depth greater than 1,500 mm is required, it will be necessary to use extension springs.
This allows infinite variation of the overall height even in the case of extremely long suspension depths.

Quick-action suspension brackets

Made of galvanised steel with locking slide.
The minimum suspension height is 140 mm if using a suspension rod.

Suspension rods
Suspension rods

Avaiable with a length of 125 mm to 1,500 mm.



Strip connectors
Strip connectors

Made of aluminium, black stove-enamelled on one side.

Wall angle sections
Wall angle sections

Avaiable in all colours and with a maximum lenght of 3,000 mm.


Stepped angle sections
Stepped angle sections

Avaiable in all colours and with a maximum lenght of 3000 mm.

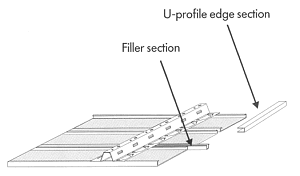

U-profile edge sections and filler sections
U-profile edge sections and filler sections

Avaiable in all colours and with a maximum lenght of 3000 mm.


Inspection  hatches
Inspection hatches

for easy access to the space inside the ceiling. This new developement ensures that the inspection hatches can be opened and closed without the use of tools.

Simply raising the inspection cover automatically releases the latch, and it can be closed again just as easily by pressing it upwards until the latch snaps shut. The process can be repeated any number of times without causing the slightest damage.

The carrier rails are already integrated into the inspection hatch so that the panels can be clipped into them after they have been fixed in position.

The following dimensions are avaiable from stock:

300 x 300 mm
400 x 400 mm
500 x 500 mm
600 x 600 mm
800 x 800 mm
1000 x 1000 mm

Other measurements on request.

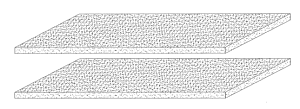

Sound-absorbing mats
Sound-absorbing mats

material: mineral wool, 20 mm thick, black tissue welded in film on request.


Felted-fabric sound-absorbing elements
Felted-fabric sound-absorbing elements

Material: Natural fibre, dyed fully black, drip-resistant and rot-resistant, easily cut-to-size, environment-friendly, fungicidal and chemical-resistant.

Additional modules
Additional modules

This module allows you to easily integrate spotlights, light fittings and loudspeakers in the strip ceiling.
