Aluminium Strip Ceiling | Strip Ceilings of Dobner

Aluminium Strip

The Aluminium strip consists of an AIMn 1 Mg 0.5 alloy to DIN 1725 H 48 and high-gloss anodised made from AL 99.85 (hard).

Behavior in fire

Non combustible construction materials, Class A to DIN 4102 (A 1, A2).

Coating

The visible face of the strips is stove enamelled and is avaiable in all RAL clours. The polyester paint has a thickness of 20mµ, is corrision-resistant, light-fast, abrasion-resistant, frost-resistant. water-repellent, odour-free and electrostatically non chargeable.
All strips are coated with a transparent protective paint with a thickness of 5 mµ on the rear side.

Should you require a special shape matched uniquely to our individual requirements, we will be more than willing to submit a quotation to you.

Special components

If necessary, we can integrate customised components in our strip system (ventilation, air-conditioning systems, curtain systems ...)

Sound absorption

The room volume is increased proportionally by the open join and additional perforation of the strps. In conjunction with the sound-absorbent material, it is possible to adapt the characteristics of the acoustic ceiling perfectly to the relevant acoustic requirements of the room.

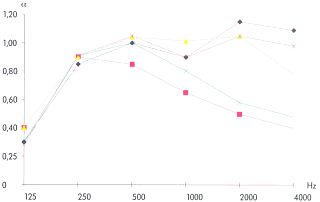

If required, we are able to supply a sound-absorption diagram for each strip system, showing the precise characteristics of the sound-absorption curve.

DOBNER ALUMINIUM STRIP CEILINGS DOBNER ALUMINIUM STRIP CEILINGS	DOBNER ALUMINIUM STRIP CEILINGS DOBNER ALUMINIUM STRIP CEILINGS	Aluminium Strip The Aluminium strip consists of an AIMn 1 Mg 0.5 alloy to DIN 1725 H 48 and high-gloss anodised made from AL 99.85 (hard). Behavior in fire Non combustible construction materials, Class A to DIN 4102 (A 1, A2). Coating The visible face of the strips is stove enamelled and is avaiable in all RAL clours. The polyester paint has a thickness of 20mµ, is corrision-resistant, light-fast, abrasion-resistant, frost-resistant. water-repellent, odour-free and electrostatically non chargeable. All strips are coated with a transparent protective paint with a thickness of 5 mµ on the rear side. Should you require a special shape matched uniquely to our individual requirements, we will be more than willing to submit a quotation to you. Special components If necessary, we can integrate customised components in our strip system (ventilation, air-conditioning systems, curtain systems ...) Sound absorption The room volume is increased proportionally by the open join and additional perforation of the strps. In conjunction with the sound-absorbent material, it is possible to adapt the characteristics of the acoustic ceiling perfectly to the relevant acoustic requirements of the room. If required, we are able to supply a sound-absorption diagram for each strip system, showing the precise characteristics of the sound-absorption curve.
	Strip Kp 84 / Modul size 100 / perforated Gap width 16 mm, acoustic boards 20 mm, ceiling cavity 200 mm Strip K 84 / Module size 100 / unperforated Gap width 16 mm, acoustic boards 20 mm, ceiling cavity 200 mm Strip Kp 134 / Module size 150 / perforated Gap width 16 mm, acoustic boards 20 mm, ceiling cavity 200 mm Strip K 134 / Module size 150 / unperforated Gap width 16 mm, acoustic boards 20 mm, ceiling cavity 200 mm Strip K 100 / Module size 100 / closed Gap width 16 mm closed, acoustic boards 20 mm, ceiling cavity 200 mm
